Create a self extracting archive and launch an installer

If you have used Visual Studio to create an installer, then you will find that their are two output files required for the installation – setup.exe and setup.msi. You can zip these together into a package, but what if you want a single EXE file installer? Well you can use 7-Zip to create a packaged EXE installer which will then execute your Visual Studio installer all in one go.

First of all, you need a few pre-requisites which are listed below:

• 7-Zip should be installed on the machine you are creating the EXE package with
• You need the “7zS.sfx” file which can be downloaded from our Downloads section

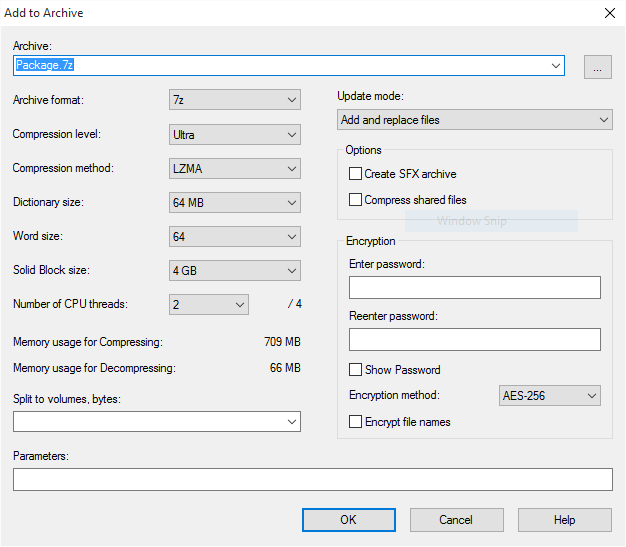

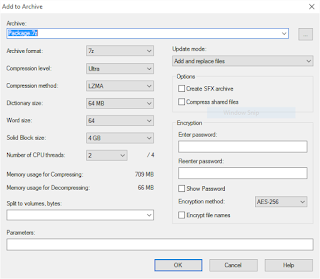

So, you will first need to use 7-Zip to package together your Visual Studio setup files (setup.msi and setup.exe), but instead of compressing them into a zip file, you need to compress them into a 7z file:

You then need to create a “config.txt” file. You should use Notepad++ to create this file and ensure that you are using UTF-8. To do this, click the “Encoding Menu” and choose “Encode in UTF-8”.

Then you need to enter the following into the config.txt file:

;!@Install@!UTF-8!
Title=”Installer v1.0″
BeginPrompt=”Are you sure you want to install Installer v1.0?”
RunProgram=”setup.exe”
;!@InstallEnd@!

You should edit the config.txt to how you require it.

Then create a folder (lets call it C:\package for this guide) and put in the following files:

• config.txt
• package.7z
• 7zS.sfx

You then need to package up the three files to create your EXE in all one installer. To do this, create a text file in “C:\Package” and rename it run.bat – ensuring that you have made the file a batch file and no longer a text file (changing the file extension). Then edit this file and enter the following and save:

copy /b 7zS.sfx + config.txt + package.7z package.exe

Note that the “package.exe” is the filename you want to give to your final installer output.

Once you have done this, you should now find that you have a EXE standalone installer – run it and test it to ensure that everything is how you want it to be.

Frequently Asked Questions

Can I use this for any installer, not just Visual Studio output?

Yes — this technique works for packaging any set of setup files into a single self-extracting EXE, not just Visual Studio installers. As long as your target program has a command-line silent/normal install switch you can reference in RunProgram, the same config.txt and 7-Zip SFX approach applies.

The resulting EXE won’t run — what should I check first?

Double-check that config.txt is saved as UTF-8 (not UTF-8 with BOM, which can break the SFX header parser), that RunProgram exactly matches the filename inside your 7z archive, and that the copy /b command completed without errors — a truncated package.exe is the most common cause of a silently failing installer.
